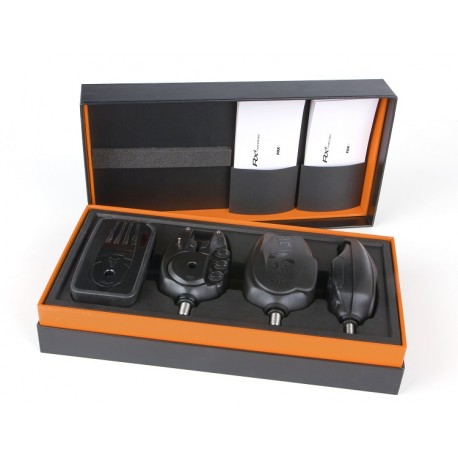

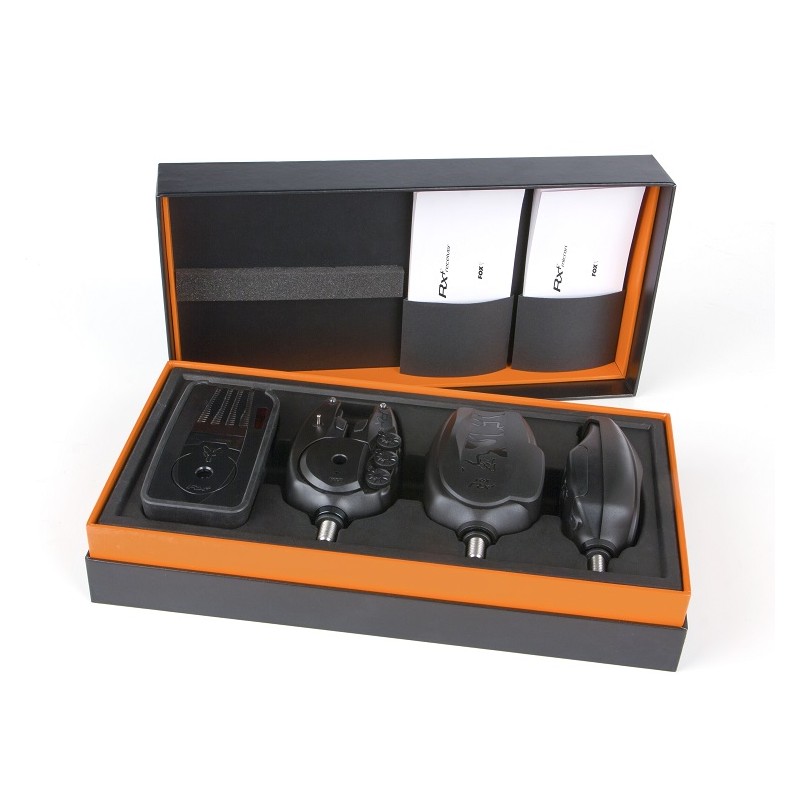

Fox Rx+ 3 Rod Presentation Set

Weatherproof sealed case

Digital circuitry

D-Tec™ Plus Sensing System (DTSS)

Low battery drain

CNC machined Tru-Run™ roller wheel

Twin multi-colour LEDs (Red, Green, Blue, Orange, Purple & White)

On / Off toggle switch with 2 operational modes (day and night mode)

When in night mode both LEDs will subtly glow in your chosen colour

High quality cone speaker

Rigid 3/8" stainless steel thread

Rod-friendly rubber inlays

Indexed ergonomic control for volume (8 different levels of volume with lowest setting being completely silent)

Indexed ergonomic control for tone (8 different tone settings: turn dial clockwise to raise pitch and anti-clockwise to lower pitch)

Indexed ergonomic control for Intelligent Sensitivity featuring See-Saw elimination (8 different sensitivity settings – see below Sensitivity table for comparison to NTX-R)

Range test function allows user to check RX+ Receiver is picking up RX+ head at any given range

Low battery warning (LED colour changes to cyan indicating it is time to replace batteries)

Power Out Socket (2.5mm) for use with illuminated Swingers

Supplied with two compression washer options: rigid and soft with an additional spare soft washer per unit

Requires 2 x AA batteries

RX+ Single heads, RX+ Receiver, 2-rod and 4-rod presentation sets also available separately

Improved features compared to NTX-R

Deeper ears with no increase in the height of the alarm

Twin multi-colour LEDs, one per ear and at the very top of the ear

External control of the multi-colour LEDs with Colour Sync™ function – simply change LED colour via button on the battery cover

Manually selectable day and night modes

External control of the Vari-Bright adjustable LED brightness to suit the conditions you are fishing in (choice of 3 LED brightness settings in day mode and 3 different brightness settings in night mode) simply adjust via button on battery cover

Larger clearance around the roller wheel and improved drainage vastly reduces chances of roller wheel freezing up in extreme cold conditions

Stronger range performance with RX+ Receiver

Improved sensitivity range (see below)

Sensitivity Control

In all sensitivity settings (except maximum), the line must travel the specified distance in the same direction and within 2 seconds in order to trigger the unit. Any movement in the opposite direction will reset the distance counter to zero. This can substantially reduce, or eliminate false triggering caused by wind and water movement.

Line Movement RX+ Line Movement NTX-R

Setting 1 (Min) 90mm 74mm

Setting 2 73mm 56mm

Setting 3 56mm 48mm

Setting 4 34mm 40mm

Setting 5 17mm 32mm

Setting 6 11mm 24mm

Setting 7 5.6mm 16mm

Setting 8 (Max) 2.8mm 8mm

RX+ Receiver

Features

Ultra-Long Range™

Digital circuitry

Low battery drain

Battery life indication when receiver is switched on (4 x green LEDs indicates full/close to full, 3 x green LEDs indicates the batteries are used, but do not need replacing, 2 x orange LEDs indicates the batteries are becoming low, 1 x red LED indicates batteries are low and need replacing)

Low battery warning (LEDs will flash cyan periodically indicating the batteries need replacing)

Alarm low battery warning (when RX+ head turns to low battery warning so will the receiver for that particular alarm, again changing colour to cyan)

Vibration alert function (via switch on rear)

Bivvy light function (via switch on rear, see below for more details)

Anti-theft alarm

Easy RX+ Micron registration (via switch at rear)

Indicator LEDs with Colour Sync™

On/Off & volume control

High quality cone speaker

Lanyard attachment point

Requires 3 x AA batteries

Improved features over NTX-R Receiver

Larger indicator LED windows, visible from both the front and the top of the receiver

Optional bivvy light function when you receive a bite

Free standing design for placing on bivvy table/bucket lid

Soft grip casing

Ability to sync up to eight RX+ Micron heads

Stronger radio performance

Silent ON mode, full receiver function but with no sound output

Bivvy Light function

When the bivvy light feature is turned on via the switch on the back of the receiver it will behave in the following ways:

The indication lights on the receiver will be dimmed slightly to prevent the receiver emitting too much light whilst the bivvy light is active

The bivvy light will only come on if three bite triggers are received in quick succession to prevent liners and false indication turning your bivvy light on unnecessarily

The bivvy light will fade into full brightness and remain on whilst the alarm continues to send trigger signals to the receiver. The light will fade out to nothing in the 5 seconds after the trigger lights have gone out on the receiver as long as no more indications are received
